Quick Details

  • Type: Farm Equipment
  • Use: Agriculture
  • Certification: CE ISO
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: CW
  • Model Number: CW-SLA/ CW-SLB
  • Condition: New
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Dimension: 2360*900*1150mm
  • Power: 4KW or 5.5KW solid liquid separator
  • Application: Animal Waste, food residue
  • Handling capacity: 7-30m3/h Solid liquid separator
  • Motor power: 3KW
  • screen Diameter: 200mm or 280mm
  • Color: customize
  • Body Material: Carbon steel/ stainless steel

Packaging & Delivery

Packaging Details Liner vibrating screen use fumigation-free plywood case
Delivery Time Shipped in 20 days after payment
Product Description

Cow Cattle Chicken Manure Dryer Machine / Poultry Dung Solid Liquid Separator For Farm


This Cattle Farming Equipment is a solid-liquid separating machine including a screw conveyor. Using both principles of separation, by gravity and by mechanical pressing, the machine is designed to separate the liquid phase from the solid phase in a wide range of substances such as sludge, sewage, manure, solids-liquid mixtures, vegetables, processing waste and others, where the percentage of liquid inside the solid may be considerably different.

The separated solid and liquid phases can be handled in an easier and cheaper way. In some sectors this can even become a source of income.
Motor   (KW)
Capacity (m3/h)
Water Consume when Cleaning
Cleaning Frequency
Max cesspool depth
Feeding Method
Each 20-30 days
Hopper or pump
Each 20-30 days
Hopper or pump

The three models' capacity for different raw materials:

Raw Material
Capacity (Cubic meters)/Hour
Cow dung sludge
Pig dung sludge
Chicken dung sludge
Slaughterhouse waste water
Biogas waste

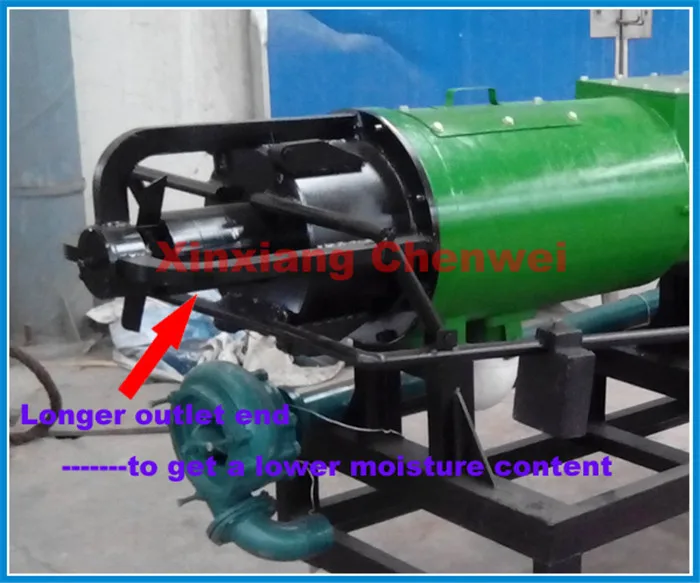

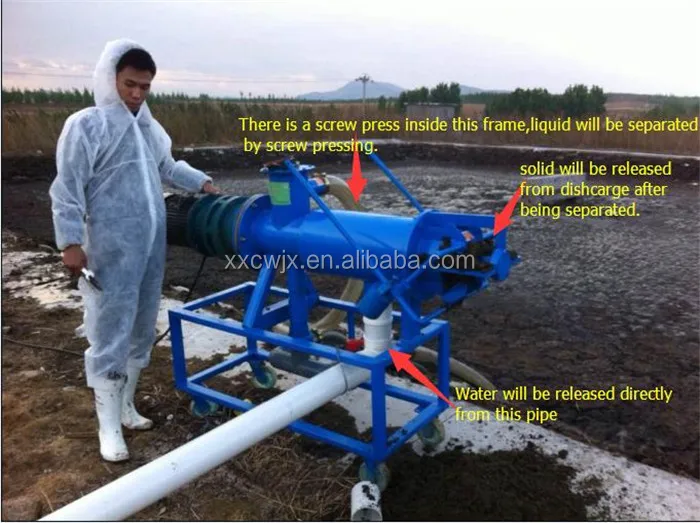

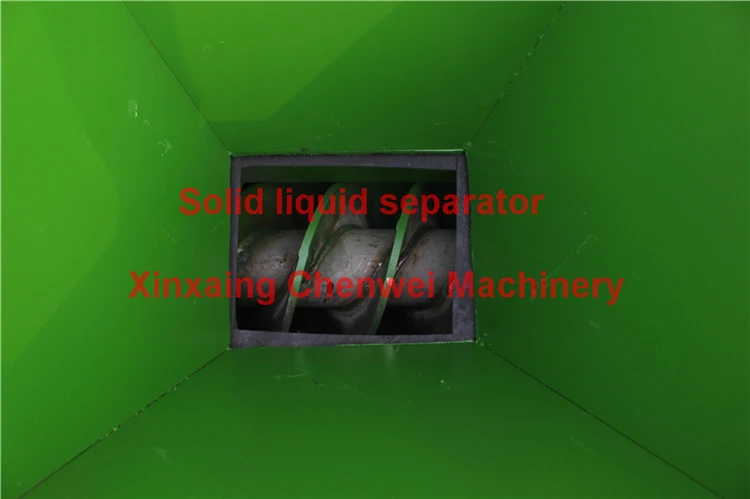

The machine receives the material to be separated and conveys it using the screw conveyor inside the separator casing. The liquid phase is separated through the mesh of the cylindrical screen which encloses the screw conveyor. Along its path toward the exit, the material gradually separates progressively the less linked liquid and then the more strongly linked liquid until a plug of almost dry material has formed before the outlet. The plug is continuously expelled through the outlet diaphragm.The machine will automatically find its balance of squeezing force depending on the material. Consequently, it can be used for a wide range of materials without the need for any manual adjustments

Performance & Technical Features - Benefits
Compliant with a wide range of materials in different throughput rates
Optimized feeding thanks to compensator tank
Outlet diaphragm for solids manufactured from anti-wear engineering polymer: cost saving in spare parts
Self-balanced pressure at the solids outlet: steady and safe operation
Simple operation and cost saving in spare parts
Continuous operation
Quick return on investment

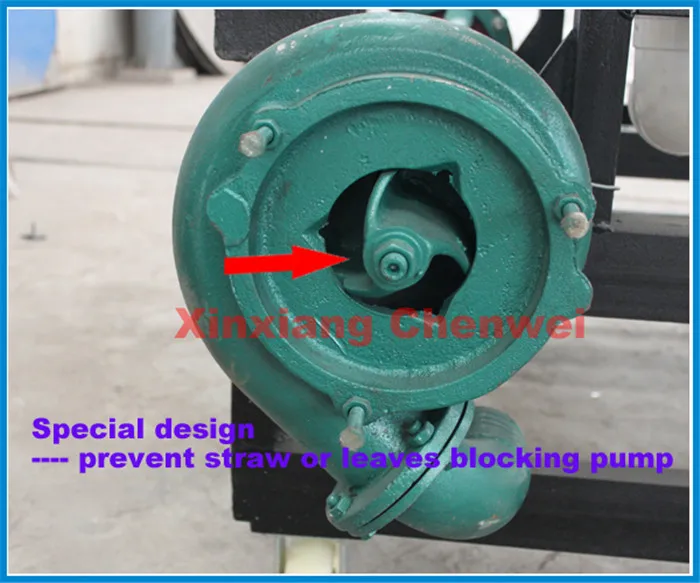

Detailed Image
Packing & Delivery
Our Company

The enterprise, established in 1987, is located in Xinxiang Economic Development Zone,Henan province .
We have the enterprising and energetic team of excellence who are dedicated to their career. More than 200 staff work for us, including 65 technicians and engineers with senior title . In 2000, we established CAD workstation earlier than others in China.

Chenwei strengthens internal management and passed the certification of IS09001 certification. Excellent quality and service have won a good reputation for our company. It is a member of Quality Association of Economic Development Zone and is continuously listed “AAA enterprise of contract’s implementation & credit”, and sucessfully become the CFB center of national power industry.


Q:What factors I need to get a quotation?
A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry. With our experienced quality control team, we are trying to offer most of our customers the product with bset quality. However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q: How could I trust your promise?
A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;
secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China, China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;
Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.
